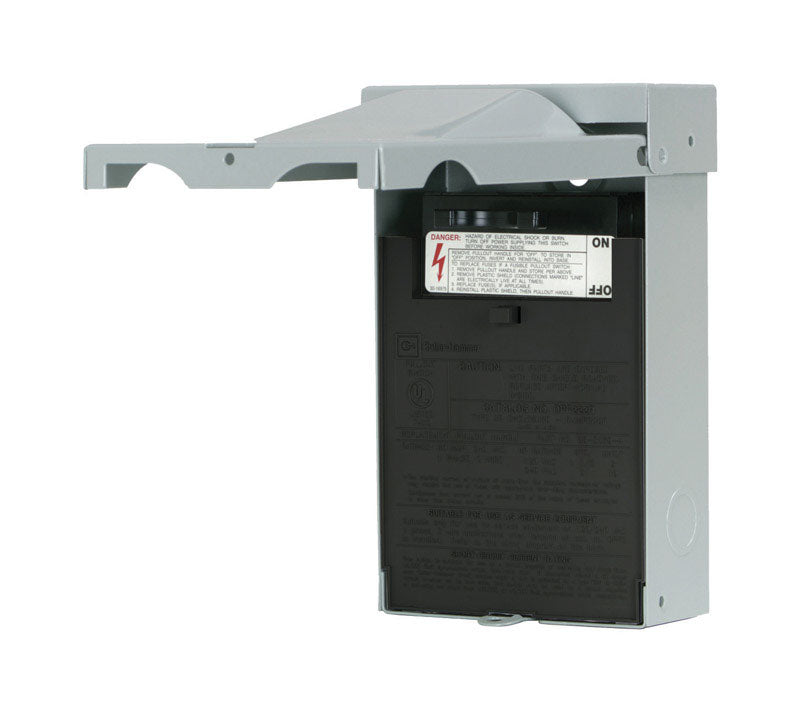

The Eaton 60A Fusible AC Disconnect is a rugged outdoor-grade solution built on the Type CH platform to provide safe, reliable isolation for 60-amp electrical feeders. With a surface-mount design and a compact footprint, this disconnect blends straightforward installation with dependable protection for 120/240V circuits in outdoor environments.
Key advantages
-
60 Amp fusible protection delivers controlled, fuse-based overcurrent protection to safeguard wiring, motors, and connected equipment.
-
Outdoor-ready, surface-mount enclosure designed for exterior installations on walls or equipment enclosures, optimizing space without compromising safety.
-
Type CH architecture compatibility means seamless pairing with Eaton switching and protection devices, simplifying panel design and maintenance.
-
UL Listed for peace of mind and compliance with industry standards, ensuring reliable performance in demanding settings.
-
Electrical rating supports 120/240 VAC feeders, making it suitable for a wide range of commercial and light industrial applications.
-
Compact dimensions — 5.5 inches wide, 9 inches tall, and 2.54 inches deep — for efficient mounting in tight spaces.
-
Packaging guarded with shrinkwrapped packaging to protect the unit during shipment and handling.
-
CSA listing not required — designed to meet applicable UL requirements while aligning with typical U.S. installation standards.
What it protects and where to use it
- Isolates outdoor feeders supplying commercial outdoor equipment, HVAC compressors, pumps, and other 60A loads.
- Ideal for service entrances, equipment pads, or exterior walls where a dedicated disconnect is needed before a distribution panel or device bank.
- Helps simplify maintenance procedures by providing a clearly defined, code-compliant point of isolation for personnel.
Specifications at a glance
- Amperage rating: 60 A
- Voltage: 120/240 V
- Circuit protection type: Fusible
- Mounting: Surface Mount
- Enclosure color/style: outdoor, Type CH family compatibility
- Dimensions: Width 5.5", Height 9", Depth 2.54"
- Listings: UL Listed (CSA Listed: No)
- Packaging: Shrinkwrapped
Choose the Eaton 60A Fusible AC Disconnect to deliver dependable, code-compliant isolation for outdoor electrical feeds. It’s a purpose-built solution for technicians who value precise protection, streamlined installation, and long-term reliability in demanding outdoor environments.
