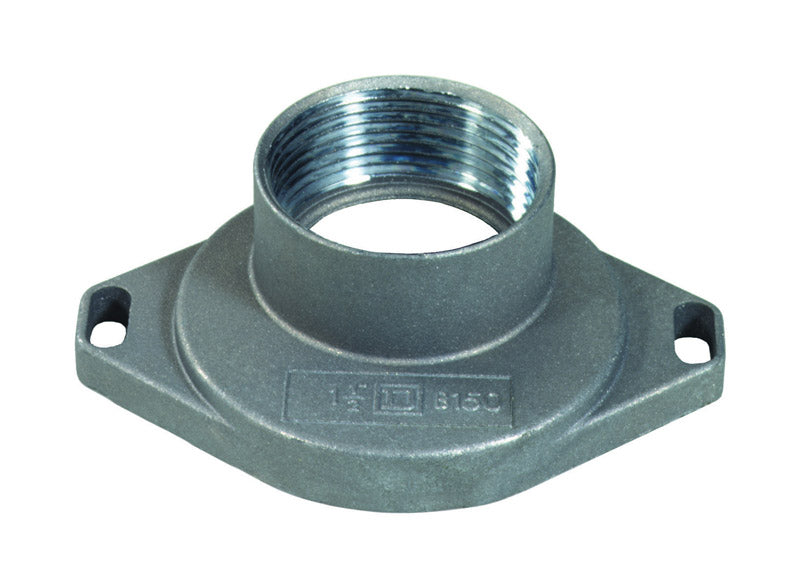

Engineered for durable outdoor use, the Square D Bolt-On 1-1/2 in Loadcenter Hub for B Openings delivers a secure, straightforward mounting solution designed to fit standard B openings in Square D load centers. This UL-listed hub is built to withstand outdoor environments while preserving reliable electrical connections, making it a dependable choice for commercial and industrial panel installations.
What it is and what it does
This bolt-on loadcenter hub provides a robust conduit entry point for B openings, enabling clean routing of cables into/load centers without compromising enclosure integrity. Its 1-1/2 inch size is ideal for applications requiring a compact, secure hub that maintains alignment and spacing within the panel footprint. With outdoor suitability, it stays dependable in weather-exposed installations while delivering consistent performance over time.
Key features at a glance
- Mounting Type: Bolt-On for quick, secure attachment
- Product Type: Loadcenter Hub, designed specifically for B openings
- Size: 1-1/2 in, with overall dimensions 4.6 in (W) x 6.5 in (H) x 1.4 in (D)
- Packaging Type: Bagged to protect components during shipping and storage
- Indoor/Outdoor: Outdoor-rated for exposed installations
- UL Listed: Yes, confirming compliance with safety standards
Who benefits from this hub
Electrical installers, facilities managers, and system integrators working with Square D panels will appreciate the precise fit and reliable performance of this hub. It’s ideal for upgrading or configuring outdoor load centers where B openings need a secure, standards-compliant mounting point.
Why this hub stands out
Unlike generic mounting options, this Square D hub is purpose-built for B openings in Square D load centers, ensuring optimal alignment and a tight, weather-ready fit. The bolt-on design simplifies installation, reducing service time and potential reseating issues, while UL listing provides added assurance of electrical safety and compliance.
Usage scenarios and practical tips
- Outdoor panel installations where a 1-1/2 inch hub is required to accommodate conduit entries.
- Retrofits or upgrades of existing Square D load centers needing a reliable B opening hub.
- Maintenance or expansion projects that benefit from a bagged packaging approach to protect components prior to installation.
- Consult your installation manual for proper torque and mounting sequence to ensure a secure fit and maintain enclosure integrity.
