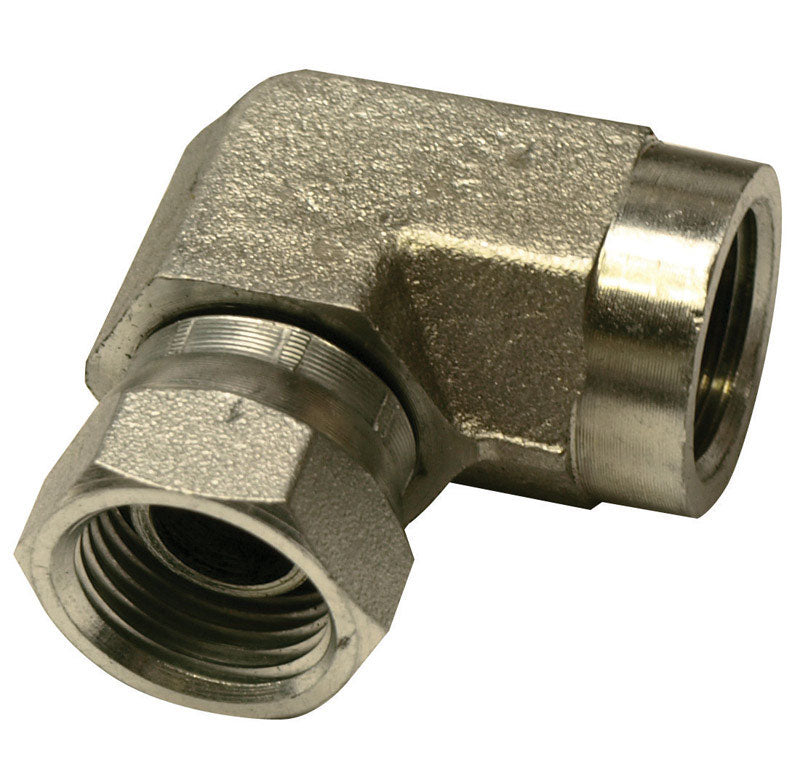

Apache Steel 1/4 in. D X 1/4 in. D Hydraulic Adapter is engineered for rugged performance in tight hydraulic spaces. With a steel body and 1/4" female pipe thread connections on both ends, this adapter ensures secure, leak-free joins between hydraulic hoses, control valves, and cylinders.
The standout feature is the 90-degree swivel outlet, which dramatically simplifies hose routing. This allows you to run hoses around obstacles, keeps lines tidy, and reduces kinking and wear in applications where space is at a premium.
Designed by Apache, a trusted name in hydraulic fittings, this adapter comes in clamshell packaging for straightforward stocking and quick field replacements. It’s a practical choice for technicians, machinists, and maintenance teams who value reliability and fast, clean installations.
Key benefits
- Durable steel construction stands up to demanding hydraulic environments.
- 1/4" FPT inlet and 1/4" FPT outlet with a 90-degree swivel for flexible hose routing.
- Compatible with standard hydraulic hoses and fittings used in control valves and cylinders.
- Clamshell packaging keeps parts organized and protected during storage and transport.
- Compact, right-angle design reduces installation footprint in tight machinery and equipment.
Common use cases
- Retrofits and repairs in small- to mid-sized hydraulic systems where space is limited.
- Routing hoses around tight corners on CNC machines, presses, farm equipment, or industrial automation gear.
- Replacing damaged adapters in service bays or on mobile hydraulics where quick, reliable connections are essential.
Installation tips
- Ensure both ends are 1/4" FPT and clean threads before assembly.
- Use an appropriate hydraulic thread sealant or PTFE tape rated for hydraulic systems; apply sparingly to the male threads and begin by hand-tightening, then finish with a wrench to snug the fitting without over-tightening.
- Align the swivel outlet to your hose path to minimize bending radius and stress on the hose.
- After installation, run the system at low pressure to check for leaks, then gradually increase to operating pressure while monitoring the joint.
With the Apache 1/4" FPT x 1/4" FPT 90° hydraulic adapter, you gain a dependable, space-saving connection that helps you maintain smooth hydraulic performance across your equipment and projects.
