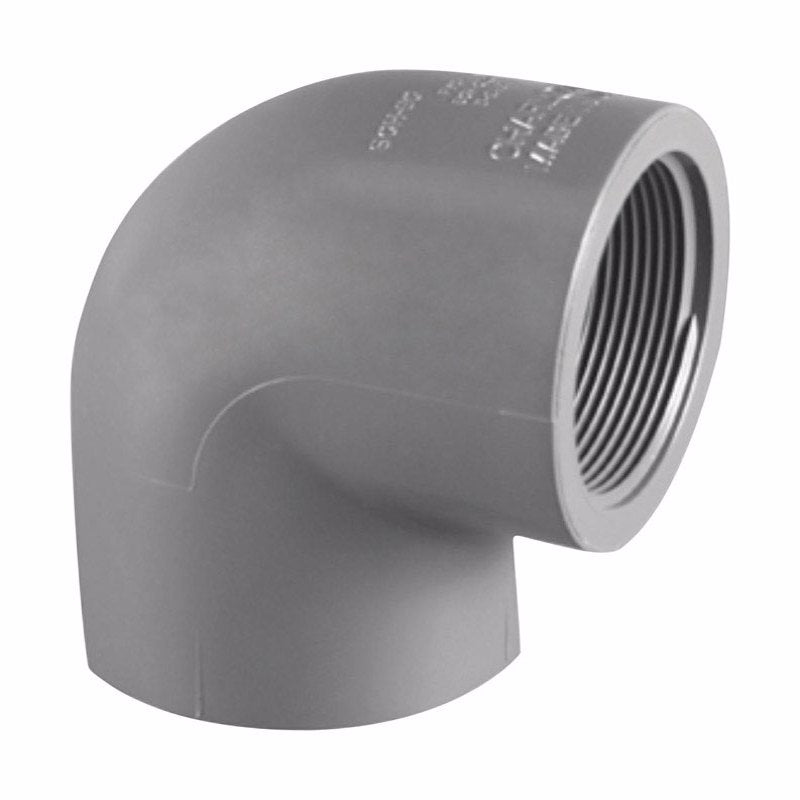

Engineered for reliability in demanding pressure-enabled PVC systems, the Charlotte Pipe Schedule 80 3/4 in. Socket X 3/4 in. D FPT PVC 90 Degree Elbow is a purpose-built directional connector designed to withstand higher stresses without sacrificing ease of installation. This elbow combines a solvent-weld socket on one end with a 3/4 in. female pipe thread (FPT) on the other, delivering a secure, versatile fit for above-ground piping runs.
-
End configurations: 3/4 in. socket (slip/solvent-weld) on one side and 3/4 in. D FPT (female pipe thread) on the other.
-
Material and design: Schedule 80 PVC with thicker walls for superior strength and higher pressure resistance than standard Schedule 40 fittings.
-
Pressure rating: Up to 690 psi maximum service, making it suitable for demanding pressure applications where durability matters.
-
Certifications: IAPMO certified and NSF listed, ensuring compliance for potable water and sanitary systems.
-
Lead safety: Lead-free construction, aligned with modern codes and safe for a variety of water-related installations.
-
Packaging: Sold as a single piece in bagged packaging, ideal for field use and inventory management.
-
Application scope: Designed for above-ground pressure piping where a threaded connection from the elbow to a male-threaded fitting is required, paired with a solvent-weld connection for the opposite end.
-
Usage note: Not rated for underground use, so plan installations for above-ground runs and protect against potential exposure to harsh environments.
Applications and installation guidance
- : Irrigation mains where a straight run must change direction and transition from solvent-w Welded PVC to a threaded component; pool equipment lines, spa plumbing, and water transfer systems that demand robust, high-pressure elbows.
-
Installation tips:
- Prepare the socket end with proper PVC primer and cement to ensure a solid solvent-weld joint.
- For the 3/4 in. FPT end, apply Teflon tape and a suitable thread sealant to mating male threads, then tighten to recommended torque without overtightening.
- Ensure the elbow is oriented to minimize stress at the joints and maintain clean, straight runs to avoid misalignment.
- Allow cement to cure fully before pressurizing the line to prevent leaks.
Why this elbow stands out
Compared with standard Schedule 80 fittings, this Charlotte Pipe elbow provides higher pressure capability and a robust combination of solvent-weld and threaded connections. The lead-free composition and NSF-listed status address health and safety concerns for potable water systems, while IAPMO certification adds confidence in code compliance for residential and commercial projects. Its 3/4 in. size makes it a precise fit for common irrigation and distribution lines, enabling reliable directional changes without the need for multiple adapters.
Whether you’re upgrading an aging irrigation loop, assembling a high-pressure water line, or integrating with threaded equipment like pumps and valves, this 90-degree elbow offers a dependable, code-compliant solution that installers can trust for long-term performance.
