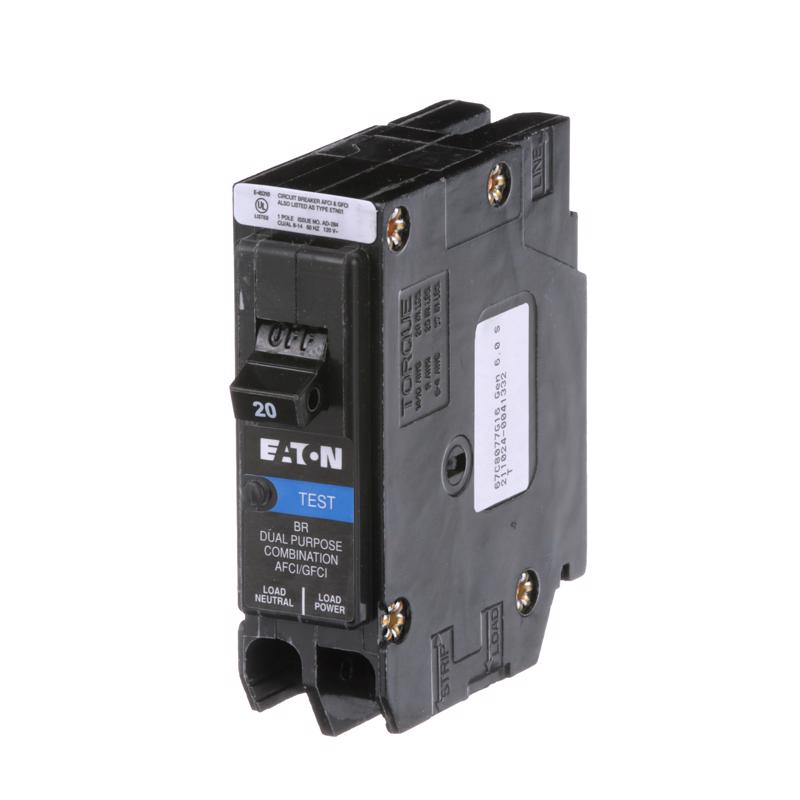

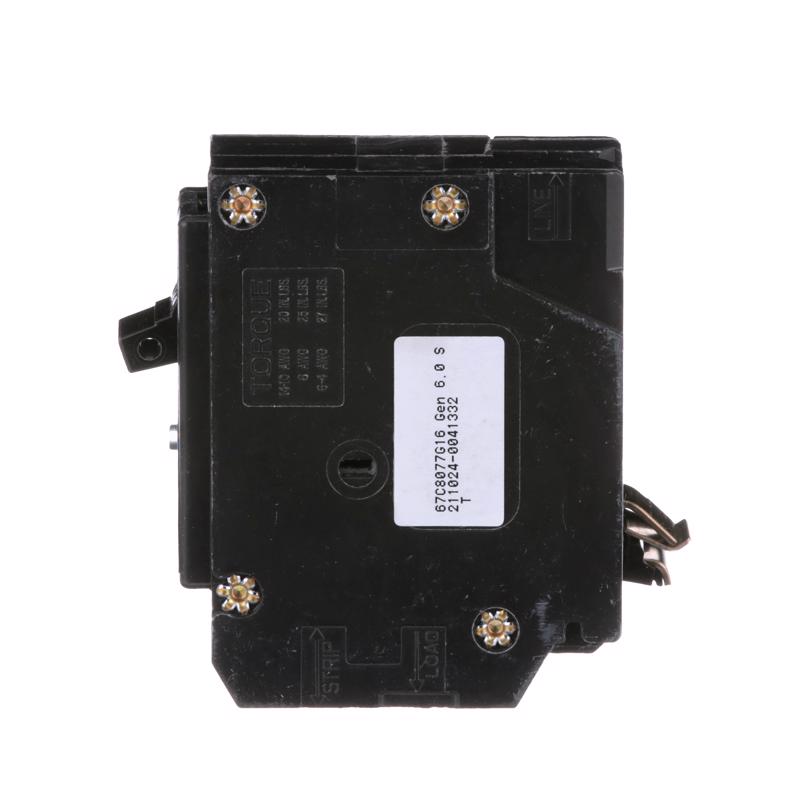

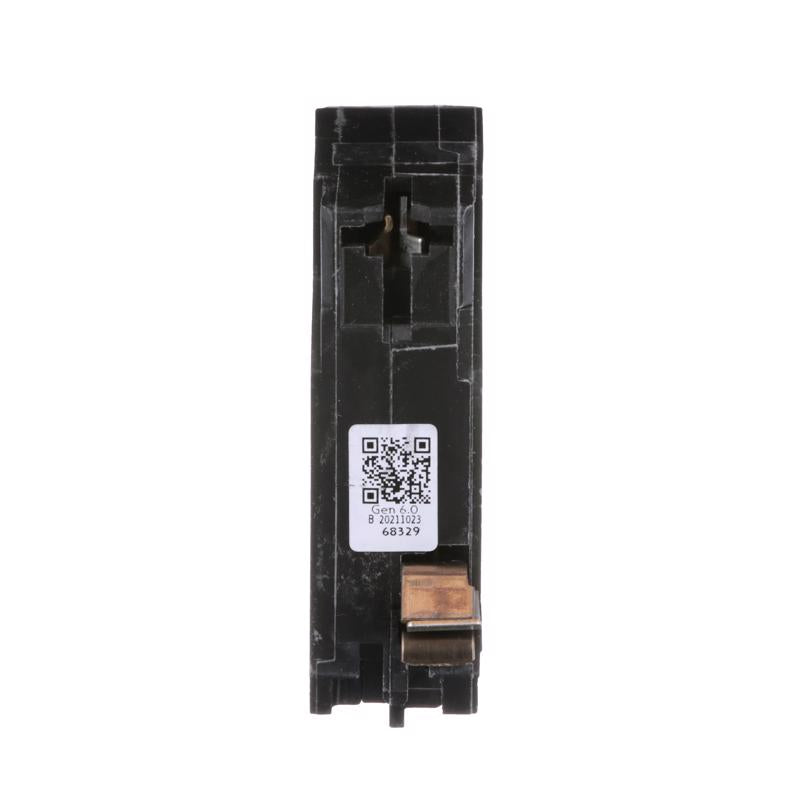

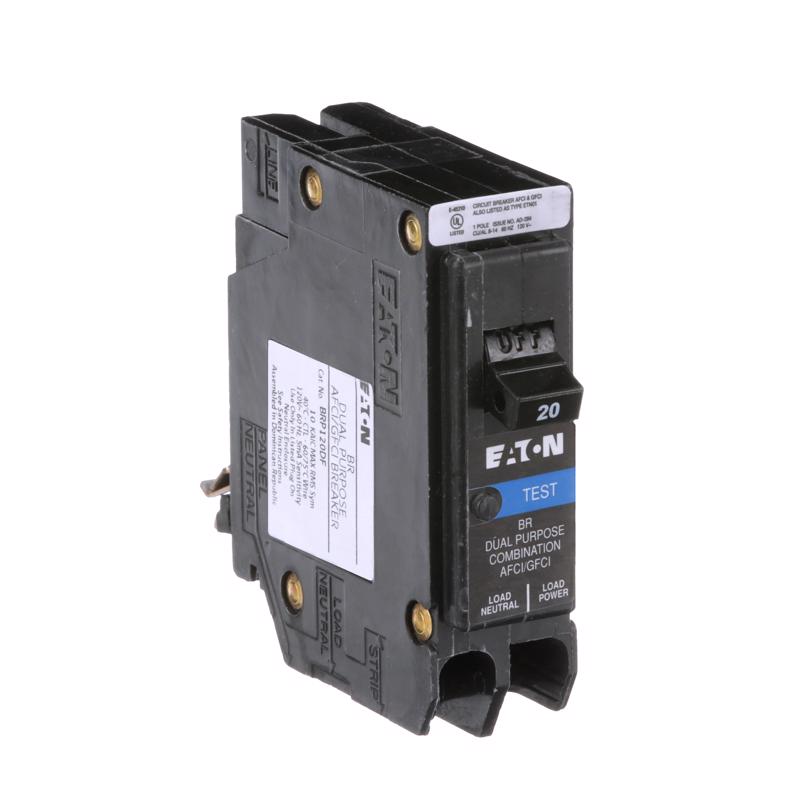

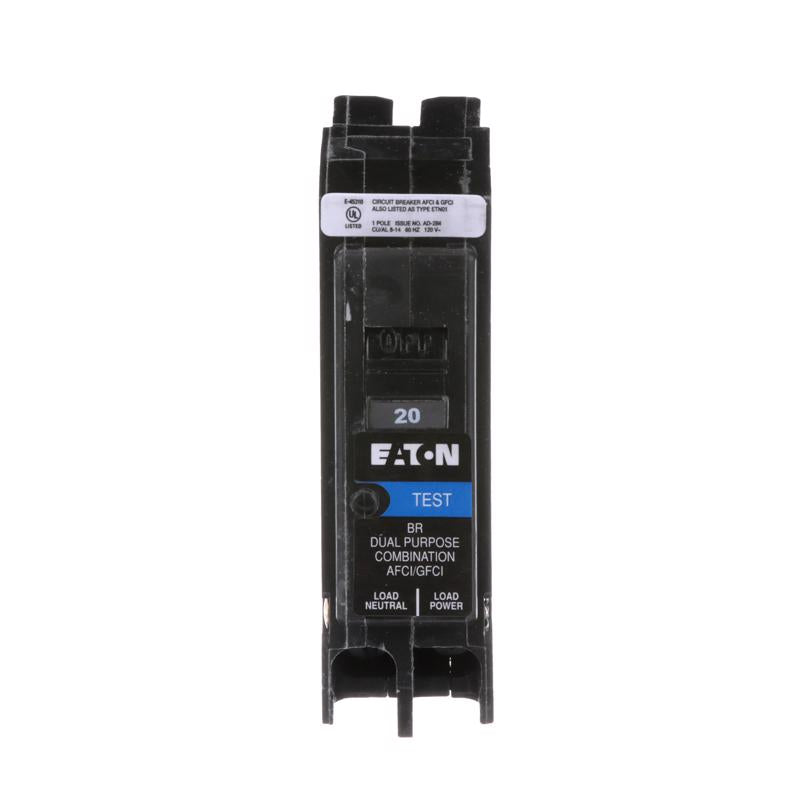

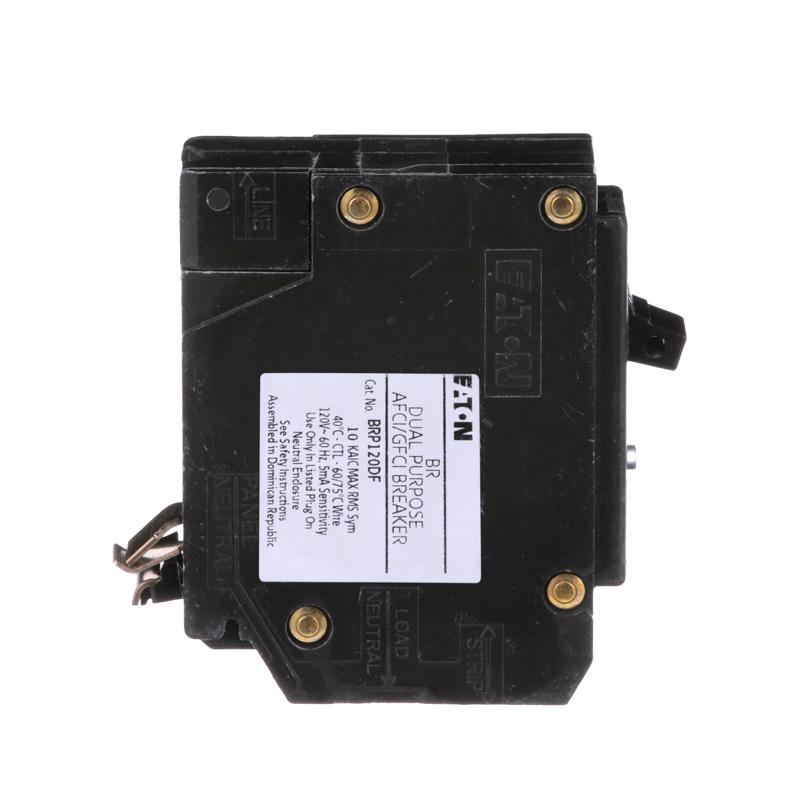

Meet the Eaton 20 Amp Arc Fault/Ground Fault Single Pole Circuit Breaker — a compact, plug-in guardian engineered for modern homes. This Type BR breaker blends two essential protections into one sleek device, giving you reliable safety without sacrificing space in your panel.
What it does
-
AFCI protection detects dangerous arc faults that can start electrical fires, shutting the circuit off before damage occurs.
-
GFCI protection monitors for ground faults and interrupts the circuit if a shock hazard is detected, helping protect people around wet or damp environments.
- Single-pole design provides 20 amps of branch-circuit protection for standard residential outlets and lighting branches on 120/240 V systems.
- Designed for Plug-In mounting in compatible panels, reducing installation time and panel crowding compared to separate devices.
Key specifications at a glance
- Amperage: 20 A
- Voltage: 120/240 V
- Circuit type: Single Pole
- Mounting: Plug-In (Type BR)
- Protection: AFCI + GFCI in one compact unit
- Listings: UL Listed, CSA Listed
- Indoor use only
- Dimensions: approximately 2.9 in W x 2.9 in D x 1 in H
Why this matters
- Consolidates two protections into a single device, saving panel space and simplifying wiring for renovations or new builds.
- Helps meet modern safety codes for arc-fault and ground-fault protection in essential living areas and circuits serving outlets and lighting.
- Reliability you can trust from Eaton, a long-standing name in electrical protection with rigorous UL and CSA certifications.
Ideal for
- Bedrooms, living rooms, home offices, and other living spaces where AFCI protection is commonly required.
- Circuits that service outlets in damp or wet environments where GFCI protection adds an extra layer of safety.
- Renovations or panel upgrades where reducing device count while maintaining safety is a priority.
Practical tips for install and use
- Ensure your panel accepts Type BR plug-in breakers and that the line/load orientation is correct for the circuit being protected.
- Turn off the main breaker and verify no voltage at the panel before installing. Follow all local electrical codes during installation.
- After installation, use the test button on the breaker to confirm both AFCI and GFCI functions are operating as expected.
- Label protected circuits clearly in the panel to help future maintenance and troubleshooting.
For a streamlined, safer electrical system, the Eaton 20 A Arc Fault/Ground Fault Single Pole Breaker delivers robust protection, compact design, and straightforward installation—empowering you to safeguard critical living spaces with confidence.
