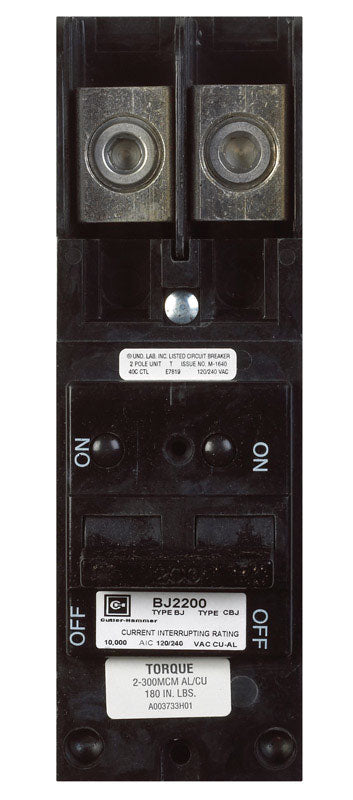

The Eaton 200 Amps Plug-In 2-Pole Circuit Breaker is engineered for dependable, high-capacity protection in residential and light commercial electrical systems. Built to fit Eaton’s Type BR panels, this 2-pole breaker delivers solid overcurrent protection for 120/240V circuits with a clean, plug-in installation that simplifies panel upgrades and replacements.
Key features that matter in the field:
-
Type BR compatibility: Specifically designed to pair with Eaton BR-series panels for a seamless fit and reliable performance.
-
200 A capacity: Ideal for heavy-load feeders and service upgrades where robust protection is required.
-
2-Pole design: Provides simultaneous protection for both hot legs, ensuring correct tripping in shared circuits.
-
Voltage rating 120/240 V: Supports common residential and light commercial wiring configurations.
-
Plug-In mounting: Enables quick installation or replacement without bus-bar modifications in compatible panels.
-
Indoor use only: Built for indoor panels and distribution centers where protection and reliability are essential.
-
UL Listed and CSA Listed: Meets top safety and performance standards for electrical protection.
-
Dimensions: Height 4 in, Width 1 in, Depth 3 in—compact enough for space-conscious panel layouts.
-
Packaging: Bulk packaging for efficient procurement in professional installations.
Who should consider this breaker? This 200 A plug-in breaker is a strong choice for panel upgrades, main feeder protection, or replacing a failing breaker in BR-series panels. It’s particularly well-suited for service panels where a robust 200 A protection level is required to safely manage large electrical loads from HVAC systems, electric water heaters, or high-demand circuits.
How it solves common problems:
- Eliminates frequent nuisance trips on high-draw circuits by providing solid, break-timer-proven fault protection.
- Speeds up maintenance with a plug-in installation that minimizes downtime and reduces the risk of wiring errors during replacement.
- Ensures compliance with safety standards via UL and CSA listing, giving installers and property owners confidence in protection credentials.
Practical tips for best results:
- Verify panel compatibility with Type BR breakers before installation to ensure a proper fit and full electrical performance.
- Turn off main power and follow lockout/tagout procedures before servicing panels.
- Label circuits clearly after installation to maintain clear, safe operation and easy future maintenance.
Choose the Eaton 200 Amps Plug-In 2-Pole Circuit Breaker for a purpose-built, reliable solution that aligns with Eaton’s BR series and delivers dependable protection for demanding 120/240V circuits—paired with the peace of mind that comes from UL and CSA safety listings.
