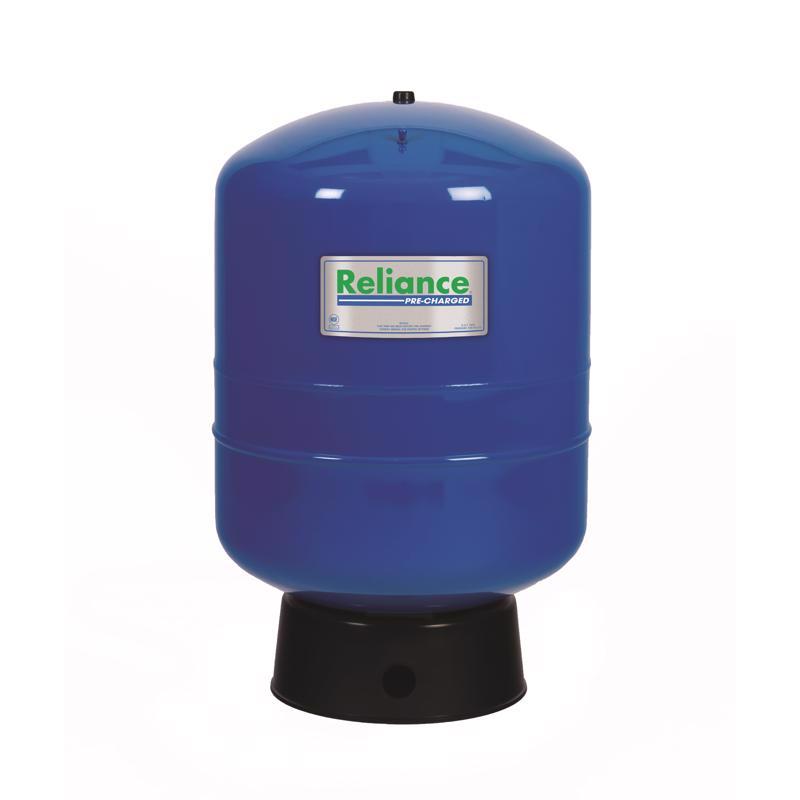

Reliance Water Systems 36 gal Pre-Charged Vertical Pressure Well Tank
Reliance Water Systems 36 gal Pre-Charged Vertical Pressure Well Tank
Reliance Water Systems 36 gal Pre-Charged Vertical Pressure Well Tank
Reliance Water Systems 36 gal Pre-Charged Vertical Pressure Well Tank
Reliance Water Systems 36 gal Pre-Charged Vertical Pressure Well Tank
Reliance Water Systems 36 gal Pre-Charged Vertical Pressure Well Tank

Reliance Water Systems 36 gal Pre-Charged Vertical Pressure Well Tank

Made in America

Support American manufacturers + independent hardware retailers in one purchase.

Epoxy-lined steel construction cuts pump wear by reducing short-cycling, all in a space-saving vertical footprint.
Reliance Water Systems MPN PMD-36
Sold Locally Only

This product isn’t sold on our website — see your local hardware store.

Typical Store Price i
Typical store price: low $296.99, average $349.99
In-Store Exclusive

This one's worth the trip to the store.

Brands like Weber, Milwaukee, Yeti, and DeWalt restrict where their products can be sold online — and for good reason. In-store buyers get authentic products, full manufacturer warranty, and access to pricing that simply isn't allowed to be advertised on the web.

  • Authorized dealer network · Full manufacturer warranty & support
  • Guaranteed authentic · No counterfeits, no gray-market resellers
  • The brands set these standards · Be wary of sellers who don't follow them
Why isn't this online? The whole story →

About Product Overview

This 36-gallon vertical pressure tank from Reliance Water Systems is built to keep your well pump from short-cycling, drawing water on demand while extending the life of the pump itself. The steel tank comes pre-charged and lined with epoxy, which resists corrosion and holds up to the constant water contact that wears down unlined tanks over time.

The 1-inch FPT female connection makes it straightforward to tie into most residential well systems, and the vertical footprint suits utility rooms, basements, and mechanical closets where floor space is tight. Rated to handle water up to 120°F, it's sized for typical household demand without requiring a larger horizontal tank. Made in the USA and boxed for straightforward transport and installation, it's a solid fit for homeowners replacing a failing tank or setting up a new well system from scratch.

  • Capacity: 36 gallons
  • Material: Steel with epoxy lining
  • Connection: 1-inch FPT (female)
  • Dimensions: 20" W x 20" D x 32.375" H
  • Maximum temperature: 120°F
  • Weight: 45 lbs

The Details Specifications

Special Handling Special handling and shipping requirements apply. UN #UN1002.
Non-Returnable This product cannot be returned. All sales final.
Brand Reliance Water Systems
UPC 091194013624
Case Pack Quantity 8 per case
Retail Unit Quantity 1
Dimensions (L × W × H) 21 × 20 × 34
Weight 45 lbs
Country of Origin USA
Safety Data Sheet (SDS) Manufacturer documentation · opens in new tab
