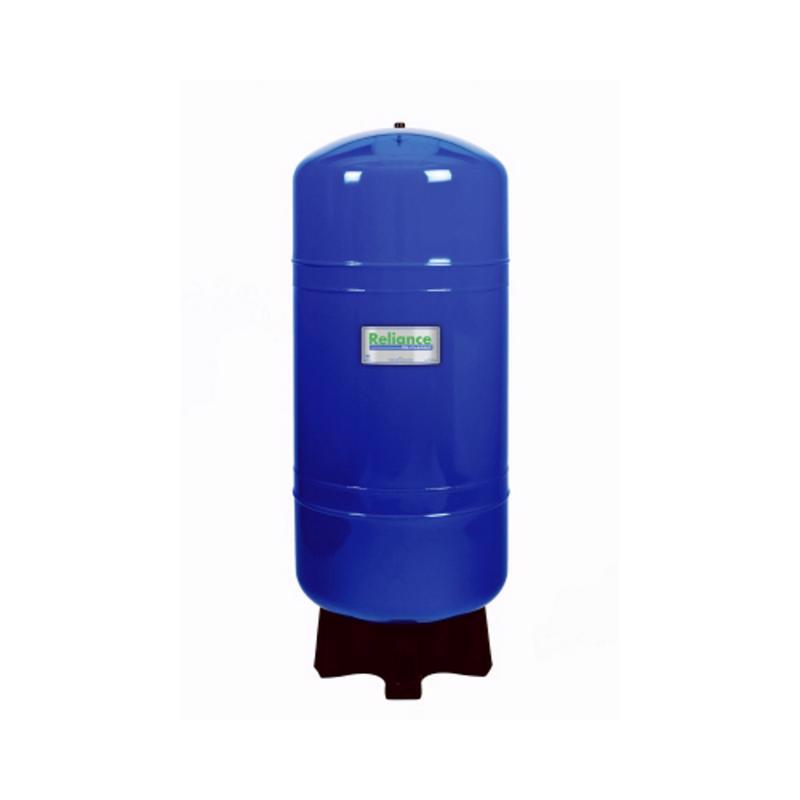

Reliance Water Systems 86 gal Pre-Charged Vertical Pressure Well Tank
Reliance Water Systems 86 gal Pre-Charged Vertical Pressure Well Tank
Reliance Water Systems 86 gal Pre-Charged Vertical Pressure Well Tank
Reliance Water Systems 86 gal Pre-Charged Vertical Pressure Well Tank
Reliance Water Systems 86 gal Pre-Charged Vertical Pressure Well Tank
Reliance Water Systems 86 gal Pre-Charged Vertical Pressure Well Tank

Reliance Water Systems 86 gal Pre-Charged Vertical Pressure Well Tank

Made in America

Support American manufacturers + independent hardware retailers in one purchase.

86 gallons of reserve capacity means fewer pump cycles and steadier pressure at every tap in the house.
Reliance Water Systems MPN PMD-86
Sold Locally Only

This product isn’t sold on our website — see your local hardware store.

Typical Store Price i
Typical store price: low $466.99, average $549.99
In-Store Exclusive

This one's worth the trip to the store.

Brands like Weber, Milwaukee, Yeti, and DeWalt restrict where their products can be sold online — and for good reason. In-store buyers get authentic products, full manufacturer warranty, and access to pricing that simply isn't allowed to be advertised on the web.

  • Authorized dealer network · Full manufacturer warranty & support
  • Guaranteed authentic · No counterfeits, no gray-market resellers
  • The brands set these standards · Be wary of sellers who don't follow them
Why isn't this online? The whole story →

About Product Overview

An 86-gallon pre-charged pressure tank built for well systems that need real reserve capacity, not just a buffer. The vertical steel tank stands 59 inches tall on a 23.375-inch footprint, so it holds meaningful volume without demanding a wide equipment pad. The epoxy lining protects the steel interior from corrosion over years of fill-and-draw cycles, which matters most in tanks that never get replaced until they fail.

The 1-1/4 inch FPT connection is sized for higher-flow well setups, and the tank is rated to handle water up to 120 degrees. Made in the USA by Reliance Water Systems, it's built for homeowners and well contractors who want fewer pump cycles and steadier water pressure at the tap, whether the tank is going into a new well installation or replacing an undersized unit.

  • Capacity: 86 gallons
  • Connection: 1-1/4 inch FPT
  • Material: Steel with epoxy lining
  • Dimensions: 23.375" W x 23.375" D x 59" H
  • Maximum temperature: 120°F
  • Made in the USA

The Details Specifications

Special Handling Special handling and shipping requirements apply. UN #UN1002.
Non-Returnable This product cannot be returned. All sales final.
Brand Reliance Water Systems
UPC 091194013662
Case Pack Quantity 4 per case
Retail Unit Quantity 1
Dimensions (L × W × H) 24 × 24 × 60
Weight 100 lbs
Country of Origin USA
Safety Data Sheet (SDS) Manufacturer documentation · opens in new tab
