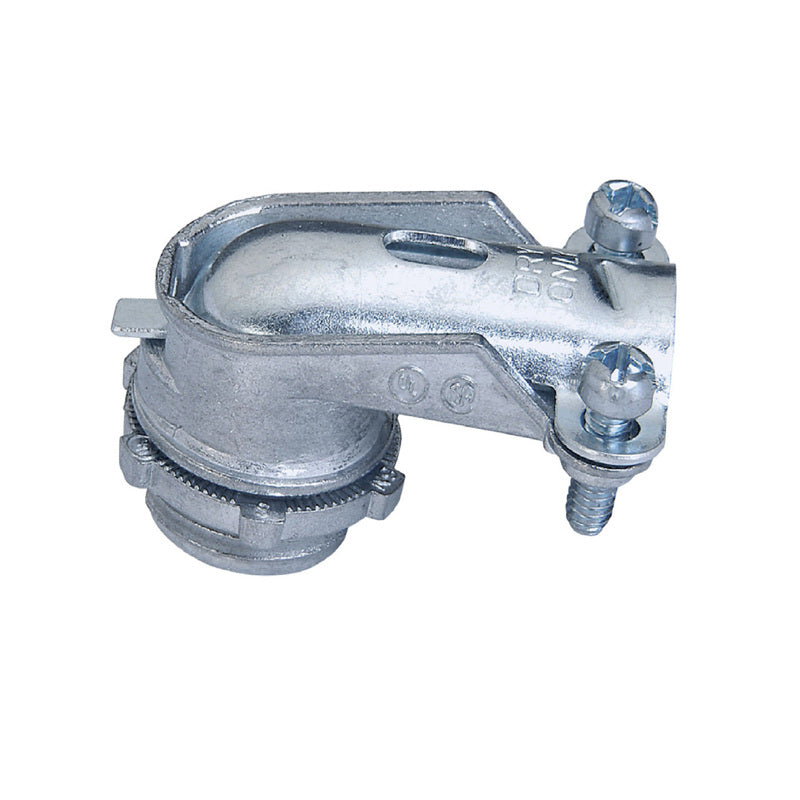

Introducing the Sigma Electric ProConnex 1 in. D Die-Cast Zinc 90 Degree Squeeze Connector for FMC/RWFMC — a purpose-built elbow connector engineered to secure one-inch conduits to enclosures with precision. This 90-degree squeeze-style connector is designed for dry-location applications, delivering a reliable, code-ready transition in tight spaces where straight fittings won’t fit.
Key features
-
Diameter: 1 in.
-
Material: Die-Cast Zinc — built for durability and long-lasting performance in demanding installations.
-
Conduit compatibility: FMC/RWFMC, enabling secure connections to flexible and rigid metal conduits.
-
Design: 90 Degree Squeeze Connector — optimized for routing conduits at tight angles without compromising grip or seal.
-
Brand / Line: Sigma Electric, ProConnex— part of a trusted line of electrical fittings.
-
Listings: UL Listed and CSA Listed (use in compliant commercial/industrial installations).
-
Packaging: Boxed, with a single unit per package.
-
Application: Dry Location installations where space constraints require a compact elbow connection.
Why this matters
The ProConnex 1 in. D Die-Cast Zinc 90 Degree Squeeze Connector delivers a dependable, code-compliant solution for routing FMC or RWFMC conduit where a straight connector can’t reach. Die-cast zinc provides solid mechanical strength to withstand everyday vibration and handling during installation, while the squeeze design offers a secure, crimp-like grip that maintains a tight, code-approved connection without threading.
Ideal uses and scenarios
- Installing conduit runs in electrical panels, junction boxes, and equipment enclosures where a 90-degree turn is required.
- Retrofits or new-builds in dry-location environments, such as commercial offices, data centers, or light industrial spaces.
- Conduit routing behind wall studs, in ceiling spaces, or along perimeter corners where space is limited.
- Applications requiring UL and CSA listings for compliance and safety documentation.
Installation tips
- Verify the conduit size and ensure FMC or RWFMC is compatible with the 1 in. diameter.
- Insert the conduit into the connector at the indicated angle, aligning the 90-degree path with your routing plan.
- Use the appropriate squeeze tooling to compress the connector until the grip is secure and the connection meets code requirements.
- Check that the connection remains tight and free of gaps before finalizing the installation.
Specifications at a glance
- 90 Degree Squeeze Connector
- FMC/RWFMC
- Die-Cast Zinc
- 1 in.
- UL Listed, CSA Listed
- Boxed, 1 unit per package
- Dry Location
-
Brand: Sigma Electric • Sub Brand: ProConnex
