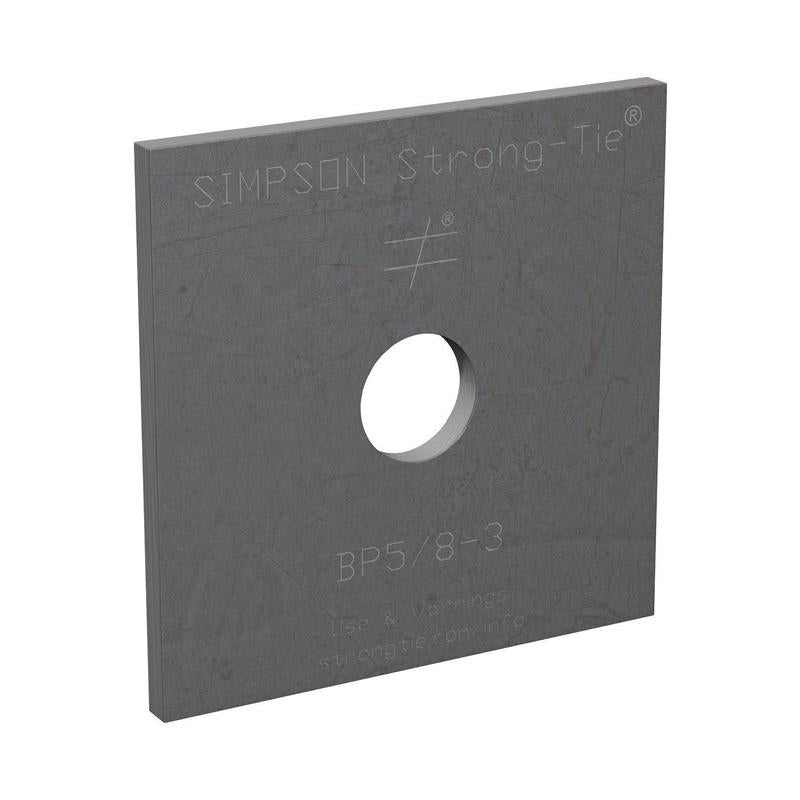

The Simpson Strong-Tie 3 in. H x 3 in. L x 0.3 in. W Uncoated Steel Bearing Plate is purpose-built to evenly distribute load across fasteners in timber connections, helping prevent wood crushing and enhancing the reliability of structural joints. With a compact 3 in. by 3 in. bearing surface and a sturdy 5/8 in. bolt compatibility, this plate is engineered for demanding framing, retrofit projects, and load-bearing connections where precision matters.
Key specifications
-
Bolt diameter: 5/8 in
-
Material: Steel
-
Finish: Uncoated
-
Gauge: 3
-
Dimensions: 3 in. (H) × 3 in. (L) × 0.3 in. (W/thickness)
-
Package quantity: 50 pieces per box
-
Hardware included: None included
Why this bearing plate stands out
-
Direct load distribution: The 3 in. by 3 in. bearing surface provides a broad contact area, reducing localized stress on timber and improving joint longevity.
-
Rugged, ready-for-use design: Uncoated steel offers dependable strength for a variety of framing conditions, with compatibility for standard 5/8 in. bolts.
-
Efficient packaging: Sold boxed in sets of 50, making it easy to stock multiple projects without frequent reorders.
-
Versatile applications: Ideal for structural timber connections, including framing headers, sill plates, and other load-bearing joints where bearing plates are recommended.
Ideal use cases
- New construction framing where rapid, reliable load transfer is needed between timber members.
- Remodels and retrofits that require reinforced connections without compromising wood integrity.
- Projects where bolt-driven connections must distribute stress over a wider area to prevent crushing.
Installation guidance
- Align the bearing plate with the bolt pattern and seating surface to ensure full contact.
- Drill bolt holes or use existing ones that accommodate a 5/8 in. bolt, ensuring clean, straight insertion.
- Tighten bolts to the appropriate torque for your framing material, balancing secure connection with timber integrity.
- Use compatible washers as needed to protect the bearing surface and distribute load evenly.
Built for reliability, backed by a trusted brand
From the name you trust in structural connections, the Simpson Strong-Tie Bearing Plate line delivers consistent performance across job sites. Its uncoated steel construction provides a straightforward, durable solution for distributing heavy loads safely and effectively in timber assemblies.
Packaging and availability: 50 plates per boxed bundle, designed for efficient stock management on professional job sites.
