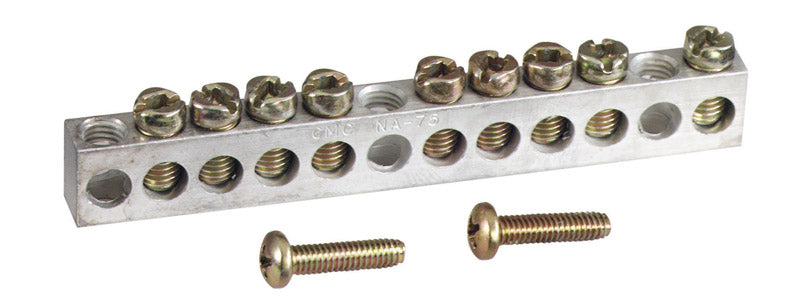

Meet the Square D 200A Ground Bar Kit — a purpose-built, surface-mount grounding and circuit-management solution designed for indoor panels. With a compact 1-space footprint and support for up to 12 circuits, this kit delivers a clean, organized path for wiring while maintaining robust protection at the service level.
Why this Ground Bar Kit stands out
-
Powerful, compact capacity: 200 amps at 120/240 volts with space for up to 12 circuits in a single 1-space configuration, helping you maximize panel capabilities without compromising space.
-
Surface-mount convenience: Designed for straightforward installation on the panel face, saving interior depth and simplifying wiring routing in tight enclosures.
-
Guaranteed reliability: UL Listed for indoor use, giving you confidence in safety, compliance, and compatibility with standard Square D installations.
-
Integrated breaker option: Breakers Included: Yes, enabling a streamlined upgrade or expansion path without hunting for separate components.
-
Clear dimensional fit: Sized at 10.00 inches wide, 1.0 inch deep, and 1.88 inches high to match common Square D footprints and panel openings.
-
Single-pole circuit protection: Circuit Protection Type: Single Pole, designed to integrate with your existing distribution strategy while maintaining straightforward fault isolation.
-
Ready-to-ship packaging: Boxed packaging ensures safe transport and orderly on-site handling from the moment it arrives.
Ideal applications and use cases
This ground bar kit is purpose-built for indoor Square D panels that require a compact, surface-mount grounding and circuit management solution. It's an excellent upgrade for panelboards needing additional circuits while preserving a neat, code-compliant wiring layout. The 200A rating supports heavy-load scenarios, making it suitable for workshops, basements, or utility rooms where reliable grounding and organized distribution matter most.
What problems it solves
- Limited interior space in panels? This 1-space, 12-circuit ground bar kit adds capacity without expanding the enclosure footprint.
- Need a dependable grounding path with ready-made circuit protection? The UL-listed kit provides a compliant, integrated solution.
- Planning a controlled upgrade? With breakers included, you can streamline installation and reduce part hunting time.
Practical tips for best results
- Verify that your panel accommodates a 1-space, surface-mount ground bar kit and that the 120/240V, 200A rating aligns with your service size.
- Plan wire routing to keep conductors organized and reduce cross-talk or interference between circuits.
- Follow all local electrical codes and installation instructions to preserve UL listings and safety margins.
