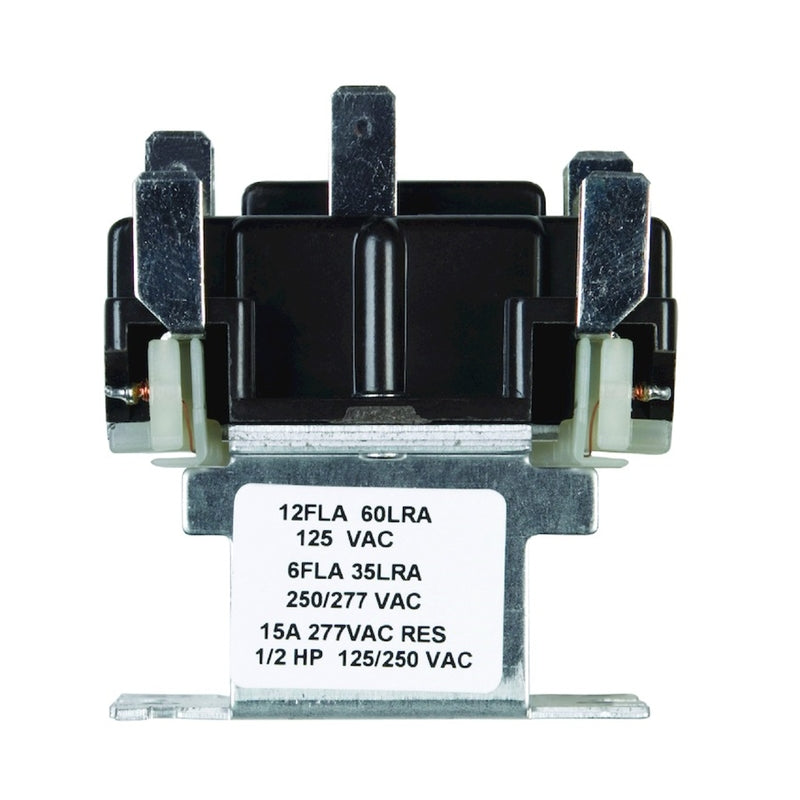

Meet the White Rodgers 2 Pole 2 Throw 24 V Furnace Relay — a compact, enclosed control device engineered for reliability in demanding furnace environments. With a 24V control coil and a dual-pole, dual-throw design, this relay simplifies how you manage multiple furnace components from a single control point, delivering clean switching for two circuits at once.
Key Features
-
Two-pole, two-throw (DPDT) contacts: effortlessly switch two independent circuits in unison, enabling coordinated control of components like gas valves and fan relays.
-
24V control coil: designed to integrate smoothly with standard furnace control boards and low-voltage circuits common in HVAC systems.
-
Enclosed design: protects the internal contacts from dust, moisture, and incidental damage, extending life in hot, humid, or dusty environments.
-
Listings you can trust: UL Listed and CSA Listed for safety and regulatory compliance in typical residential or light commercial installations.
-
Temperature tolerance: rated for environments up to 130 (units not specified), providing resilience in standard furnace heat exposure.
-
Compact, easy to install: a practical replacement for worn or failed relays, designed to drop into existing control panels with minimal modification.
Why This Relay Makes Sense for Your Furnace
In many furnace control layouts, you need to coordinate two separate outputs from a single control signal. This White Rodgers relay does that with a reliable DPDT arrangement, allowing you to route one 24V input to two distinct circuits or switch two circuits in lockstep. That means cleaner wiring, fewer components, and a simpler path to dependable furnace operation.
Ideal Use Scenarios
- Replacing a failing furnace relay on 24V control boards where two outputs must operate in sync (for example, controlling a gas valve and a secondary relay for the blower or dampers).
- Applications where a single control signal must drive two separate loads, preserving timing and sequencing without additional logic modules.
- HVAC retrofits where compact form factor and enclosed protection reduce exposure to heat and debris inside the furnace cabinet.
Practical Benefits and Outcomes
- Improved reliability by using a purpose-built furnace relay with durable, enclosed construction.
- Clear, straightforward installation within standard control enclosures, reducing downtime during replacements.
- Regulatory reassurance with UL and CSA listings, helping ensure compliance in residential and light commercial systems.
- Versatile control options thanks to the DPDT configuration, enabling more flexible wiring schemes and easier upgrades from single-pole relays.
Tips for Installation and Longevity
- Verify the coil voltage on your control board is 24V before installation to ensure proper operation.
- Protect wiring connections and use appropriate conductor sizing to minimize resistance and arcing on switching events.
- Store and install the relay in a clean, dry area within the furnace cabinet to maximize the enclosure’s protective benefits.
- When testing, power down the system first, then energize the 24V coil to confirm both outputs switch as intended. If you’re unsure about wiring diagrams, consult your furnace’s service manual or a qualified technician.
Designed for HVAC professionals and experienced DIYers alike, the White Rodgers 2 Pole 2 Throw 24 V Furnace Relay provides a dependable, space-efficient, and regulation-backed solution for controlling dual circuits in furnace control systems. Its enclosed construction, dual-throw flexibility, and 24V compatibility make it a thoughtful upgrade or replacement choice for robust furnace performance.
